Pre-Fabricated Mobile Power Module

Badr Petroleum Company – SHELL

Engineering, Supply, Commissioning and Start Up of Power Systems for NEAG-1 Field

  • Qty.1 MVSWG SF6 Power Module
  • -IP 54 shelter (14 x 3.5 x 3m L x W x H)
  • -Incoming: Qty.6 SF6 1250A/11 KV - AREVA
  • -1 Bus-Coupler - AREVA
  • -Outgoing: Qty.10 SF6 630A/11KV - AREVA
  • -Industrial Dual Redundant Battery Charger & Batteries
  • -Fire Alarm and CO2 Fire Fighting Systems
  • Qty .18 Transformers substations
  • -IP 54 shelter (7 x 3 x 3m L x W x H)
  • -SF6 Ring Main Unit - AREVA
  • -Dry Type Distribution Transformer 1.5 MV - AREVA
  • -Low Voltage Distribution Panel
  • Qty. 2 LVSWG Power Modules
  • -IP 54 shelter (12 x 3 x 3m L x W x H)
  • -LVSG Type Tested, Form 4b - SIEMENS
  • -Two Dry Type Power Transformer 2 MV - AREVA
  • Power Management System
  • -SIEMENS PLC S7-300
  • -SIEMENS Wincc SCADA System
  •  Relay coordination study




Enppi/Qarun Petroleum Company-APACHE

Design, Integration, Supply, Commissioning and Start up of KARAMA Pre-fabricated Power Module

· Pre-fabricated shelter

§ IP 54 Shelter Dimensions 11.3 x 5.3 x 4 M (L x W x H)

§ Fire Alarm and CO2 fire Fighting system

§ Outdoor CO2 cylinder cabinet

§ Air conditioning system

. Medium Voltage Switchgear (ABB)

§ Type: UniGear ZS1

§ Incoming Qty.3 SF6 630 A

§ Outgoing Qty.4 SF6 630 A.

·Low Voltage Switchgear (EATON).

§ 0.4KV X-Energy Switchgear, 2000A

§ From 4b Type7, IP 42, 65KA/1 sec

§ Incoming: Qty. 2 ACB 1600 A

§ Outgoing: Qty. 4 MCCB 630A, Qty. 2 MCCB 250 A,Qty. 9 MCCB 100 A

· Industrial Battery Charger (Convel)

§ 110VDC Dual Redundant Battery Charger

§ IP 31, 10KVA,

§ Backup time 2hrs, VRLA batteries


Badr Petroleum Company

- Supply, Installation, Commissioning and Start Up of Power Systems for NEAG-1 Field
• Qty. (1) – Siemans MVSG SF6 Power Module, Consist of the following:
- 6 incoming 630A/11 KV
- 1 Bus-Coupler
- 10 Outgoing 630A/11KV
- Industrial Dual Redundant Battery & Batteries
- Fire Alarm and Fire Fighting Systems.
- IP 55 Fire Retardant 60 min shelter (18 x 4 x 3.5M WxHXD)
• Qty. (18) - Best Transformer substation, each one consist of the following:
- Medium Voltage Ring Main Unit
- Dry Type Power Transformer 1.5 MV.
- Low Voltage Panel
- IP 55 Fire Retardant 60 min shelter (7 x 3 x 3M WxHXD).
• Qty. (2) – ABB LVSG Power Modules, each one Consist of the following:
- LVSG Type Tested, Form 4b
- Two Dry Type Power Transformer 2 MV
- IP 55 Fire Retardant 60 min shelter (12x 3 x 3M WxHXD).
• Power Management SCADA System


Khalda Petroleum Company -Apache

Supply, Installation, Commissioning and Start of MVSG power Module for El-Kasr field

  • IP 54 shelter (12 x 3 x 3m L x W x H)
  • -Two Rooms shelter
  • -Internal lighting
  • -Earthing system
  • -Fire Alarm system
  • Medium voltage (11KV), SF6 withdraw able switchboard
  • -2 incoming 630A/11 KV
  • -1 bus-coupler.
  • -6 outgoing 150A/11KV
  • Industrial Battery Charger
  • -24VDC Battery Charger
  • -Backup time 2hrs, VRLA batteries




Enppi/Badr Petroleum Company-SHELL

Design, Engineering, Supply, Commissioning and Start up of the Prefabricated power/control module for NEAG-1 water injection system

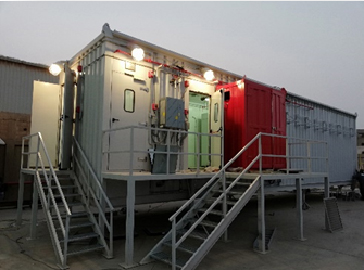

  • Pre-fabricated shelter
  • -IP 54 Shelter Dimension 15 x 3.5 x 3.9 M (L x W x H)
  • -2 Rooms shelter
  • -Fire Alarm and CO2 fire Fighting system
  • -Outdoor CO2 cylinder cabinet
  • -Air conditioning system

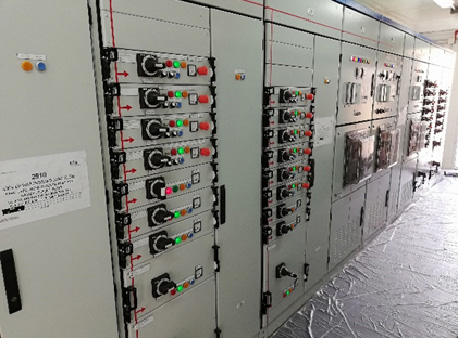

  • EATON LVSWG, Withdraw-able Type tested Form 4b
  • -0.4 KV EATON XEnergy MCC, 4P, 1600A, IP 42, 65KA/1 sec
  • -2x Transformer Incoming Motorized draw out ACB, EATON IZMX-1600A
  • -1x Bus Coupler Motorized draw out ACB, EATON IZMX-1600A
  • -20 x draw out DOL starter (0.75 KW, 5.5KW, 11KW)
  • -16x draw out Power feeder, NZM (20A..400A)
  • Control System
  • -SIEMENS PLC S7-400H, Redundant CPU
  • -Redundant communication
  • -SCADA
  • Industrial UPS
  • -Dual Redundant type with distribution board
  • -30 KVA, IP 31
  • -VRLA redundant batteries, backup time 2hrs
